MONTAGUE Navigator Folding Road/Gravel Bike with Rackstand

  • Sale
  • £1,599.00

The Navigator is a multi-use folding bike with standard 700c wheels. Knobby 35mm tires, 27 speeds, and disc brakes has this bike at home on paved roads, dirt roads and gravel trails. The included RackStand which acts as a cargo carrier, kickstand, fender, and folded bike stand also makes it perfect for commuting and touring. In a matter of seconds it folds for the train, car trunk, or closet.

DirectConnect™ Folding System

The DirectConnect folding system removes the quick release from the top tube, provides an easier folding experience and larger clamping surface between the two halves of the frame. A flip of the quick release lever and your bike folds to a compact size.

Folding Integrated Technology

The Navigator frame is designed around another patented system that allows the bike to fold without any breaks in the frame’s tubing. Not only does this make it easier to fold, but it makes Montague bikes the strongest folding bike on the market. The Folding Integrated Technology (F.I.T.) is based around the same frame construction concepts as serious full suspension downhill bikes.


RackStand is a luggage carrier, mudguard, kickstand, and work stand all in one. A quick release allows it to rotate under the rear wheel on a specially designed axle mount. When in the lowered position it acts as a kickstand or workstand, makes folding your Montague easier, and allows the folded bike to be stored or displayed upright.

All Montague bikes come '95% ready to ride' which means some minor assembly is required before you can take your new Montague bike out for a first ride.

Whilst this is generally within the realms of most competent home mechanics, our recommendation is always that you get your bike set up for you by your local independent bike shop.
Most have reasonable charges for an initial assembly and check-over (generally known as a PDI, or Pre-Delivery Inspection) and you can be sure that gears, brakes and other fine-tuning will be fully sorted for you.
It's also good to get to know them and see what other products and services they can offer.
When making your purchase, you can designate your local bike shop as the delivery address if you prefer. However, please book your assembly and checkover with them first and ensure that direct delivery to them is OK, as some have limited storage space and busy workshop schedules. If you need delivery to be on, or near, a particular date, please just email us after purchase and we will arrange this as close as possible.

Frame Sizing Suggestion

• Small (17″): For riders 4’8″ – 5’2”    Standover height is 27.63″

• Medium (19″): For riders 5’3″ – 5’10”    Standover height is 28.25″

• Large (21″): For riders 5’11” – 6’4″    Standover height is 28.25″

Frame size determines things such as maximum saddle height and reach (distance between saddle and handlebars). These can also be fine-tuned by swapping out components such as the handlebar stem for a longer/shorter one and by adjusting the position of the saddle in relation to the seat post. Your local bike shop can help you determine these factors and get a perfect fit on your Montague bike.



Midnight Blue


Custom drawn 6061 Series Aluminum with DirectConnect System.  Replaceable derailleur hanger and disc mount.


Full Cro-Mo, with disc mounts and ramped dropout.


700c Alloy. 32 hole, double wall. Black.


Kenda Khan 700c x 35mm semi-knobby.


Formula, Alloy. quick release. Disc ready.


14 Gauge


Zena Comfort.


30.0 X 300mm Alloy.


Alloy, 30mm rise. 600mm wide.


Angle adjustable


Shimano Sora for Flat Handlebar. 3-Speed Left. 9-Speed Right.

Front Derailleur

Shimano top pull for triple crankset.

Rear Derailleur

Shimano Sora. 9-Speed.  (11-25T rear cassette)


SR Suntour. 48/38/28. Alloy 175mm crank arm (170mm on 17" frame)


27 Speeds

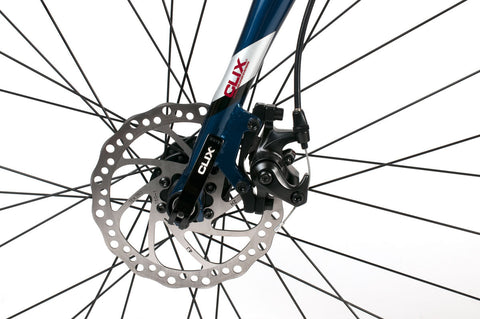

Tektro mechanical disc brakes.


Trekking pedal with all-weather non-slip tread.

Bottom Bracket

Sealed Cartridge


RackStand rear rack with fenders.

Frame Sizes

17″, 19”, 21”

Folded Size

36” x 28” x 12”


29lbs / 13.2kg

**Specifications and prices subject to change without notice. Bike specifications and prices for your country may differ. We do our best to ensure that the listed specifications accurately reflect the parts found on our folding bikes. Even so, we may have to change the component specifications from time to time. We do our best to make sure that all component substitutions are of equal performance and cosmetics as those listed . Also our international distributors often ask us to modify components to better suit their local markets. Please contact your local distributor for information about bikes in your area.

PLEASE NOTE: Current stock is EU specification with the front brake on the left side, but with cable-operated brakes, this is easily changed.
